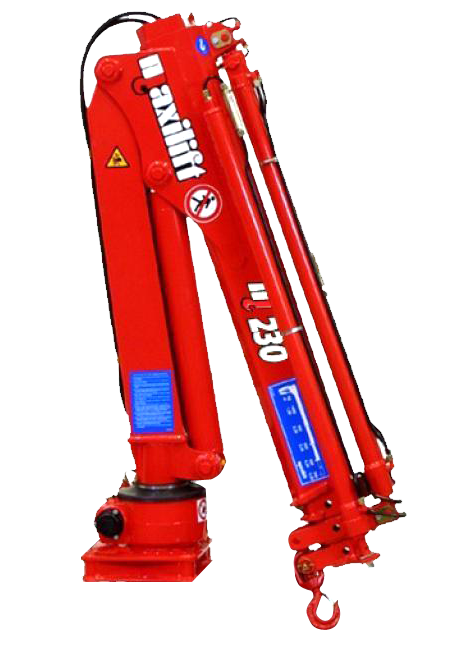

ML 230 - 2.3 tm

ML 230 - 2.3 tm

Standard outreach: from 3.20 to 4.20 m
360° slewing rotation with worm screw
4 functions valve bank

• 15 lt. oil tank for H (P.T.O. – Power Take Off) version
• Motor pump kit with 11 lt. oil tank for electro-hydraulic versions E12/24V (along with battery connection cables)
• Tie bolts set, nuts and lock nuts
• Spare grease cartridge for slewing worm gear

• Crane base with 1 hydraulic and 1 mechanical stabilizers (fix or tilting)
• Crane base with 2 hydraulic stabilizers (fix or tilting)
• 3 – 4 functions proportional remote control (by cable or radio)
• 500 kg hydraulic winch (for H versions only)- New system with
less cumbersome snatch block and quick disconnecting stop end system

Slewing angle limitation
Slewing limitation kit by proximity switches
500 kg high speed winch, with 25 m cable
(for H cranes only)

Stop end installed for CE versions
Cable remote control
3 or 4 functions proportional cable remote control
with 8 m
cable (installed)
Radio remote control
3 or 4 functions proportional radio remote control –
European frequency 434 Mhz (installed)
Additional function
Additional function on control valve bank
(not activated)
Main beam 2H
Additional beam with 2 hydraulic
extendable stabilisers

Main beam 1H
Additional beam with 1 hydraulic extendable stabiliser
(possibility to add second hydraulic
or mechanical stabiliser)
Main beam 1H+1M
Additional beam with 1 hydraulic and 1 mechanical
extendable stabilisers
Beam 1M
Additional beam with 1 mechanical extendable stabiliser
(possibility to add second stabiliser)
Tilting stabilisers
Hydraulic tilting stabilisers
Mechanical stabiliserTilting kit
Hydraulic tilting stabiliser
Side handle leg
Mechanical stabiliser leg with side handle
Manual extensions
Manual extensions “B” and “C”

Fixed installation
Electric power pack 220/380 V (triphase motor)
4 KW with 20 lt.
capacity tank (only for H version cranes)

Conversion and upgrade
Conversion kit from hydraulic version H to electric version
E 12/ 24V

Conversion kit from 2 to 3 hydraulic versions
