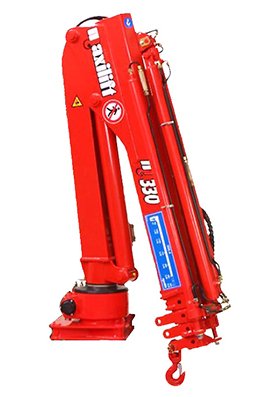

ML 330 - 3.3 tm

ML 330 - 3.3 tm

Standard outreach: from 3.30 to 5.36 m
360° slewing rotation with worm screw
4 functions valve bank

Including
• 15 lt. oil tank for H (P.T.O. – Power Take Off) version
• Motor pump kit with 11 lt. oil tank for electro-hydraulic versions E12/24V (along with battery connection cables)
• Tie bolts set, nuts and lock nuts
• Spare grease cartridge for slewing worm gear

Options
• Crane base with 2 hydraulic stabilizers (fix or tilting)
• Additional beam with hydraulic stabilizers
• 3 – 4 functions proportional remote control (by cable or radio)
• 700 kg hydraulic winch (for H versions only)- New system with
less cumbersome snatch block and quick disconnecting stop end system

OPTIONALS APPLICATIONS


Slewing angle limitation Slewing limitation kit by proximity switches	Winch 700 kg high speed winch, with 25 m cable (for H cranes only) Stop end installed for CE versions

Cable remote control 3 or 4 functions proportional cable remote control with 8 m cable (installed)	Radio remote control 3 or 4 functions proportional radio remote control – European frequency 434 Mhz (installed)

Additional function Additional function on control valve bank (not activated)	Tilting stabilisers Hydraulic tilting stabilisers

Manual extensions Manual extensions “B” “C” “D”	Fixed installation Electric power pack 220/380 V (triphase motor) 4 KW with 20 lt. capacity tank (only for H version cranes)
	Conversion and upgrade Conversion kit from hydraulic version H to electric version E 12/ 24V Conversion kit from 2 to 3 hydraulic extensions Conversion kit from 3 to 4 hydraulic extensions

FULL CAPACITY
