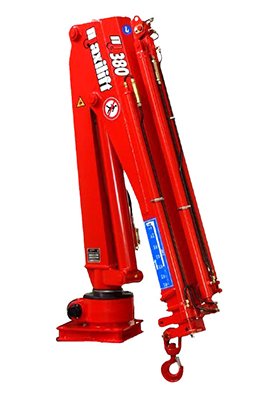

ML 380 - 3.8 tm

ML 380 - 3.8 tm

Standard outreach: from 3.65 to 5.79 m
360° slewing rotation with worm screw
4 functions valve bank

Including
• 15 lt. oil tank for H (P.T.O. – Power Take Off) version
• Motor pump kit with 11 lt. oil tank for electro-hydraulic versions E24V (along with battery connection cables)
• Tie bolts set, nuts and lock nuts
• Spare grease cartridge for slewing worm gear

Options
• Crane base with 2 hydraulic stabilizers (fix or tilting)
• Additional beam with hydraulic stabilizers
• 3 – 4 functions proportional remote control (by cable or radio)
• 990 kg hydraulic winch (for H versions only)- New system with
less cumbersome snatch block and quick disconnecting stop end system

OPTIONALS               APPLICATIONS
Slewing angle limitation
Slewing limitation kit by proximity switches
Winch
990 kg high speed winch, with 30 m cable
(for H cranes only)

Stop end installed for CE versions
Cable remote control
3 or 4 functions proportional cable
remote control
with 8 m cable (installed)
Radio remote control
3 or 4 functions proportional radio remote control –
European frequency 434 Mhz (installed)
Additional function
Additional function on control valve bank
(not activated)
Tilting stabilisers
Hydraulic tilting stabilisers
Manual extensions
Manual extensions “B” “C” “D”
Fixed installation
Electric power pack 220/380 V (triphase motor) 4 KW
with 20 lt. capacity tank (only for H version cranes)


Conversion and upgrade
Conversion kit from hydraulic version H to electric
version E 12/ 24V



Conversion kit from 2 to 3 hydraulic extensions

Conversion kit from 3 to 4 hydraulic extensions
